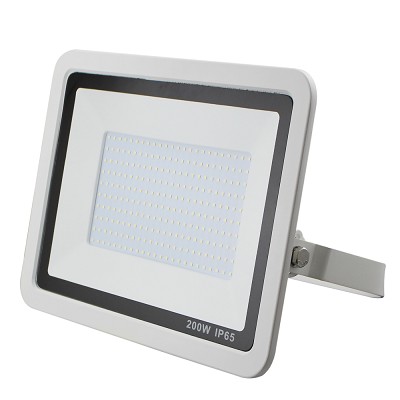

LED Flood Light Explosion-proof Waterproof Driverless Flood Light

LED Flood light features: high luminous efficiency 85-90lm / w; select 60/90/120 degrees; power range from 10~300W high CRI> 80; high quality powder coating treatment CE, RoHS and SAA & C-tick certification. Size: Optical parameters: display details:...

Send Inquiry Chat Now
Product Details

TIM1(001).pngDriverless LED Flood Light


LED driverless floodlight is a modern decorative lighting, suitable for outdoor landscape lighting, single building, historical building group exterior wall lighting, building exterior lighting, indoor partial lighting, green landscape lighting, billboard lighting, medical culture, etc. Special facilities lighting, bars, dance halls and other entertainment venues.






Features:

  1. The lamp housings are made of high-quality aluminum profiles, die-cast aluminum end caps; surface anode or painted finish. The lamp body is exquisite and beautiful, and the heat dissipation performance is good.

  2. The lamp body is sealed with tempered glass and waterproof silicone, and the internal epoxy resin is potted. Therefore, the lamp has double waterproof function and excellent waterproof effect.

  3. The light source of the lamp adopts imported high lumen high power LED chip, built-in constant current power supply, voltage AC220-240V, to ensure the stability of the lamp.

  4. The effective projection distance of the lamps is more than 10-200 meters, which is especially suitable for landscape buildings, outdoor squares, building walls and display products.

  5. The degree of protection of the luminaire is: IP65.

  6. It can be started and restarted immediately. Multiple switches will not have the light decay phenomenon in ordinary electrode discharge lamps.

Dimensions

Model

Power

Product Size

XP-FL010K00

10W

83*103*24MM

XP-FL020K00

20W

160*122*26MM

XP-FL030K00

30W

160*122*26MM

XP-FL150K00

50W

205*160*34MM

XP-FL100K00

100W

270*210*34MM

XP-FL150K00

150W

300*240*50MM

XP-FL200K00

200W

380*280*44MM

XP-FL300K00

300W

445*335*45MM


Product Picture:

主图(001).jpg 4(001).jpg
2(001).jpg 1(001).jpg


Optical Parameters:

Driverless LED Flood Light

Specification


Type

K LED type

SMD3030

PF >0.9 Beam Angle 120°
Voltage AC 220V CRI ≥80Ra
Working Temp.  -40℃~65℃ Light Efficiency 85-90lm/W
Driver DriverLess Warranty 3 Years
CCT 3000-6500K

Model

Power

Product Size

LEDs Qty

Packaging

XP-FL010K00

10W

83*103*24MM

10PCS

41*39*36.5CM/ 28PCS/CTN

XP-FL020K00

20W

160*122*26MM

32PCS

46*27*47CM/ 16PCS/CTN

XP-FL030K00

30W

160*122*26MM

32PCS

46*27*47CM/ 16PCS/CTN

XP-FL150K00

50W

205*160*34MM

64PCS

61*31.5*30CM/ 10PCS/CTN

XP-FL100K00

100W

270*210*34MM

128PCS

51*36.5*35CM/ 8PCS/CTN

XP-FL150K00

150W

300*240*50MM

196PCS

61*31.5*30CM/ 10PCS/CTN

XP-FL200K00

200W

380*280*44MM

256PCS

51*36.5*35CM/ 8PCS/CTN

XP-FL300K00

300W

445*335*45MM

396PCS

51*36.5*35CM/ 8PCS/CTN


INSTALLATION DRAWING:

5.jpg 6.jpg


Packaging Drawing
