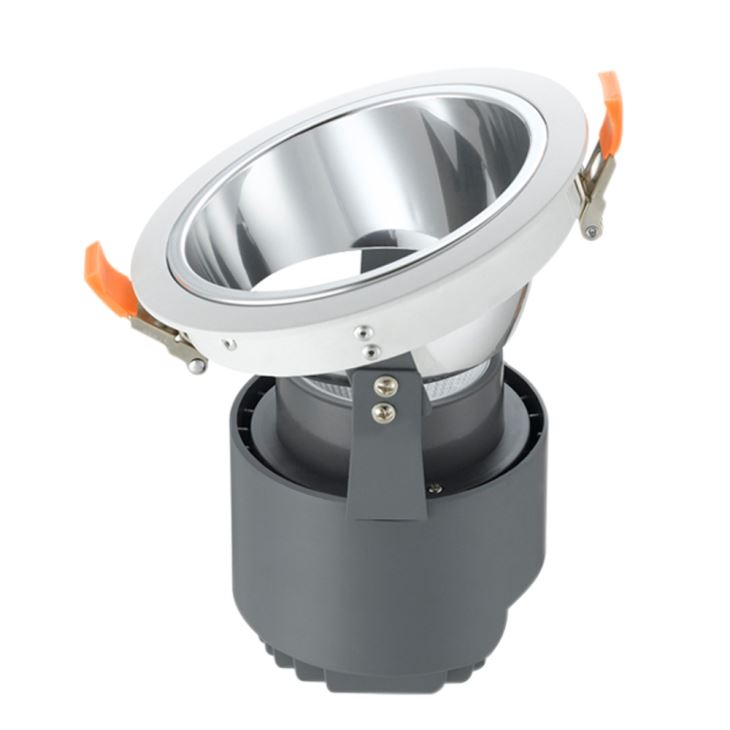

0-10V Dimmable COB CREE Chip Anti-glare Recessed LED Downlights

1. Open hole on the ceiling as specified,Diameter:
2. Cut off electricity, connect the driver input with electricity through the hole;
3. Connect the driver output with the lamp;
4. As the photo shows, put the lamp into the hole and adjust it to suitable position

Send Inquiry Chat Now

Product Details

Feature:
Anti-glare, no flicker
CRI>80, 80lm/w
50 000H lifespan
Simple and elegant design

Item No.	Power	Beam Angle	Ra	Number of LEDs	Input Volt	Light effect	Cut hole
XP-CL007G00	7W	20,40,60	>80	7W COB	AC85-265V	>80LM/W	50MM
XP-CL0010G00	10W	20,40,60	>80	10W COB	AC85-265V	>80LM/W	75MM
XP-CL0015G00	15W	20,40,60	>80	15W COB	AC85-265V	>80LM/W	100MM
XP-CL0025G00	25W	20,40,60	>80	25W COB	AC85-265V	>80LM/W	125MM
XP-CL0030G00	30W	20,40,60	>80	30W COB	AC85-265V	>80LM/W	155MM
XP-CL0035G00	35W	20,40,60	>80	30W COB	AC85-265V	>80LM/W	185MM

Application:
Widely used in the hotel, shopping malls, supermarkets, municipal engineering school, hospital,parking lots, household and so on.

1、Carton label on top left of inner box, product label on lamp;
2、Transportation :Seal the package before delivery, handle gently, and mark product name, quantity and other important information on packing.
3、Storage Requirement：Moisture-proof, dust-proof, anti-pressure, anti-fall, anti-acid substances, avoid direct sunlight and condensation.
4、Storage Time：1year. It should be recheck and make sure the lamp electrical performance up to standard after one year storage.
