Home > Product > LED Downlight > Unique LED Rectangular Rotatable Recessed Downlight For Shop Lighting

Unique LED Rectangular Rotatable Recessed Downlight For Shop Lighting

Rectangular LED DownLight /Shop lighting LED downlight (led rectangular shop light) is a kind of modern and decorative lighting, which is ideal for shopping malls, supermarkets, hotels, jewelry counters and high-end home. Features: ● High brightness 100lm/w ● Beautiful light color ● High CRI...

Send Inquiry Chat Now

Product Details

Rectangular LED DownLight /Shop lighting

LED downlight (led rectangular shop light) is a kind of modern and decorative lighting, which is ideal for shopping malls, supermarkets, hotels, jewelry counters and high-end home.

Features:

● High brightness 100lm/w

● Beautiful light color

● High CRI >80

● Better consistency

● Long lifespan 50KHrs

Dimensions

Features

1)60 degree rotating is convenient for installation;

2)High quality LED chip with 90lm/w efficiency;

3)Frosted glass cover can decrease glare;

4)Isolation driver with beryl electric capacity will be safer;

5)20W,28W,38W and 48W power are available;

6)CE,RoHS,RCM and SAA certificates are available.

Specifications

Model	Power	Input Voltage	LED Qty	Luminous	CCT	CRI	PFC	Bean Angle
CL020G00	20W	AC100-240V 50-60Hz	50PCS 5730SMD	1800- 3200lm	2200- 3500K 4000- 4500K 4700- 6700K	80	0.95	120°
CL028G00	28W	AC100-240V 50-60Hz	75PCS 5730SMD	2600- 3400lm		80	0.96
CL038G00	38W	AC100-240V 50-60Hz	105PCS 5730SMD	4500- 5500lm		80	0.97
CL048G00	48W	AC100-240V 50-60Hz	135PCS 5730SMD	4705- 6230lm		80	0.97

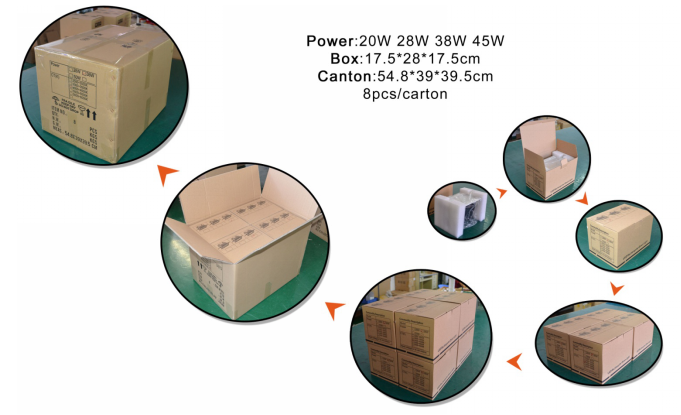

Packaging Data

Model	Net Weight	Box(cm)	Carton(cm)	Qty
CL020G00	1.45kg	18.526.518.5cm	583738cm	8pcs
CL028G00	1.45kg	18.526.518.5cm	583738cm	8pcs
CL038G00	1.47kg	18.526.518.5cm	583738cm	8pcs
CL048G00	1.47kg	18.526.518.5cm	583738cm	8pcs

Installation Drawing


1.Cutting out according to the hole size.	2.Push both side of the circlip, insert into ceiling hole

3.Properly connected to the electric power box.
